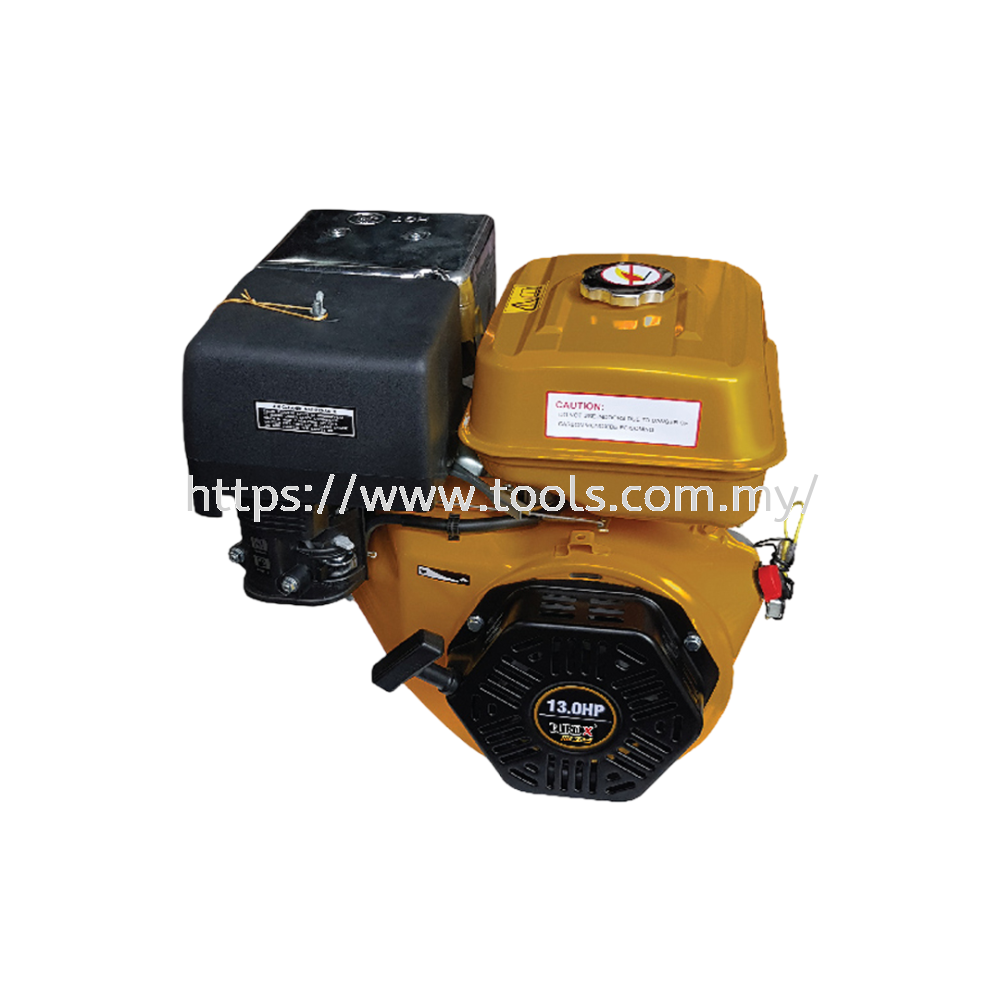

EPY-3900	ENGINE 13HP KEY
Model	EPY-3900
Engine Type	Air Cooled 4 Stroke OHV Petrol Engine, 25o Inclined Cylinder, Horizontal Shaft
Bore x Stroke	88 x 64 mm
Displacement	389 cm3
Compression Ration	8.0 : 1
Max. Power Output	9.6 kW (13 HP) / 3600 rpm
Ignition System	Transistorised
Starting System	Recoil (electric start optional)
Fuel Tank Capacity	6.5 L
Specific Fuel Cons.	313 g / kW.hr ~ 230 g / HP.hr
Engine Oil Capacity	1.1 L
Dimensions (L x W x H)	405 x 450 x 443 mmr
Dry Weight	31 kg
